Shopify Meta Pixel & Conversions API Audit & Server-Side Tracking Fix Guide (2026)

Quick Answer

A Shopify Meta Pixel and Conversions API audit finds out why Meta receives fewer or messier signals than your store really produces. List every place that sends events to your Meta dataset, check that browser and server events share the same event ID so they deduplicate, remove duplicate pixels and old gateway setups, then route events through one clean path such as Server-Side GTM on Stape. Finish by raising Event Match Quality and testing every event from page view to purchase.

Key Takeaways

• The symptom: your 180-day website audience in Meta is much smaller than your Shopify traffic, so retargeting and lookalikes start from a weak base.
• Diagnose first: rebuilding GTM without finding the cause usually copies the same fault into a new container.
• Three usual causes: missing events, failed deduplication, and more than one pixel setup running at once.
• The event ID rule: the browser event and the server event need the same event name and the same event ID, sent to the same dataset.
• One path only: pick the Shopify Meta app or Server-Side GTM as your source of truth and remove the rest.
• Match quality matters: hashed email, phone, and the fbp and fbc values help Meta recognise more of your visitors.

Introduction: Your Store Is Busy, but Your Meta Audience Is Small

Open two tabs. In the first, your Shopify analytics show a healthy number of sessions for the last six months. In the second, Meta Ads Manager shows your 180-day website visitors audience.

The second number is far smaller than you expected.

The visitors came. Meta just did not record most of them in a way it could use.

This is one of the most common problems I am asked to look at on Shopify stores, and it matters more than it first seems. That audience feeds your retargeting campaigns. It is the seed for your lookalike audiences. When it is underpopulated, every campaign built on it starts with less to work with.

The quick reaction is to rebuild the tracking. I do not start there. I start with a diagnosis, because the cause is rarely “no tracking”. It is usually two or three setups stepping on each other, or one event that quietly stopped firing.

In this guide I will walk you through the same Shopify Meta Pixel and Conversions API audit I use: how to find the root cause, how to fix deduplication, and how to move to a clean server-side setup.

First, a Reality Check: The Two Numbers Never Match Exactly

Before you hunt for faults, know what is normal. Shopify counts sessions. Meta counts people it can recognise. One person who visits five times is five sessions and one audience member. A visitor Meta cannot connect to an account is not added at all.

So the goal is not a perfect match. The goal is to remove the faults, so the gap that remains is only the normal part.

What Are the Meta Pixel and the Conversions API?

The Meta Pixel is a script that runs in the visitor’s browser and reports what they do. Think of it as a messenger who leaves from the visitor’s own front door. Sometimes the door is locked by an ad blocker or a privacy setting, and the message never leaves.

The Conversions API, often called CAPI, sends the same events from a server instead. Think of it as a second messenger who leaves from your office. Nothing in the visitor’s browser can stop it.

Most stores run both. That is good practice, and it creates one new job: deduplication. When both messengers report the same purchase, Meta has to know it is one purchase, not two. It does that with an event ID, a shared reference number on both messages.

Prerequisites & Setup Checklist

• Shopify: store owner or staff access to Settings, Customer events, the theme code, and installed apps.
• Meta: admin access to the dataset (pixel) in Events Manager and to the ad account.
• Google Tag Manager: access to the Web container and the Server container, if you use them.
• Server hosting: a tagging server on Stape Global or Stape Europe for the server-side part.
• Browser tools: Chrome with the Meta Pixel Helper extension.

For a fast first look, run your store through my free Meta Pixel and CAPI checker and the free Shopify store checker. They show which pixels and tracking apps a page loads.

Video Tutorial Walkthrough

Prefer to watch? In this short video I explain how I audit a Shopify store’s Meta Pixel and Conversions API setup and what the three milestones are.

Step-by-Step Implementation Guide

I work through three milestones: audit and tracking map, implementation, and QA. Below they are split into six phases you can follow in order.

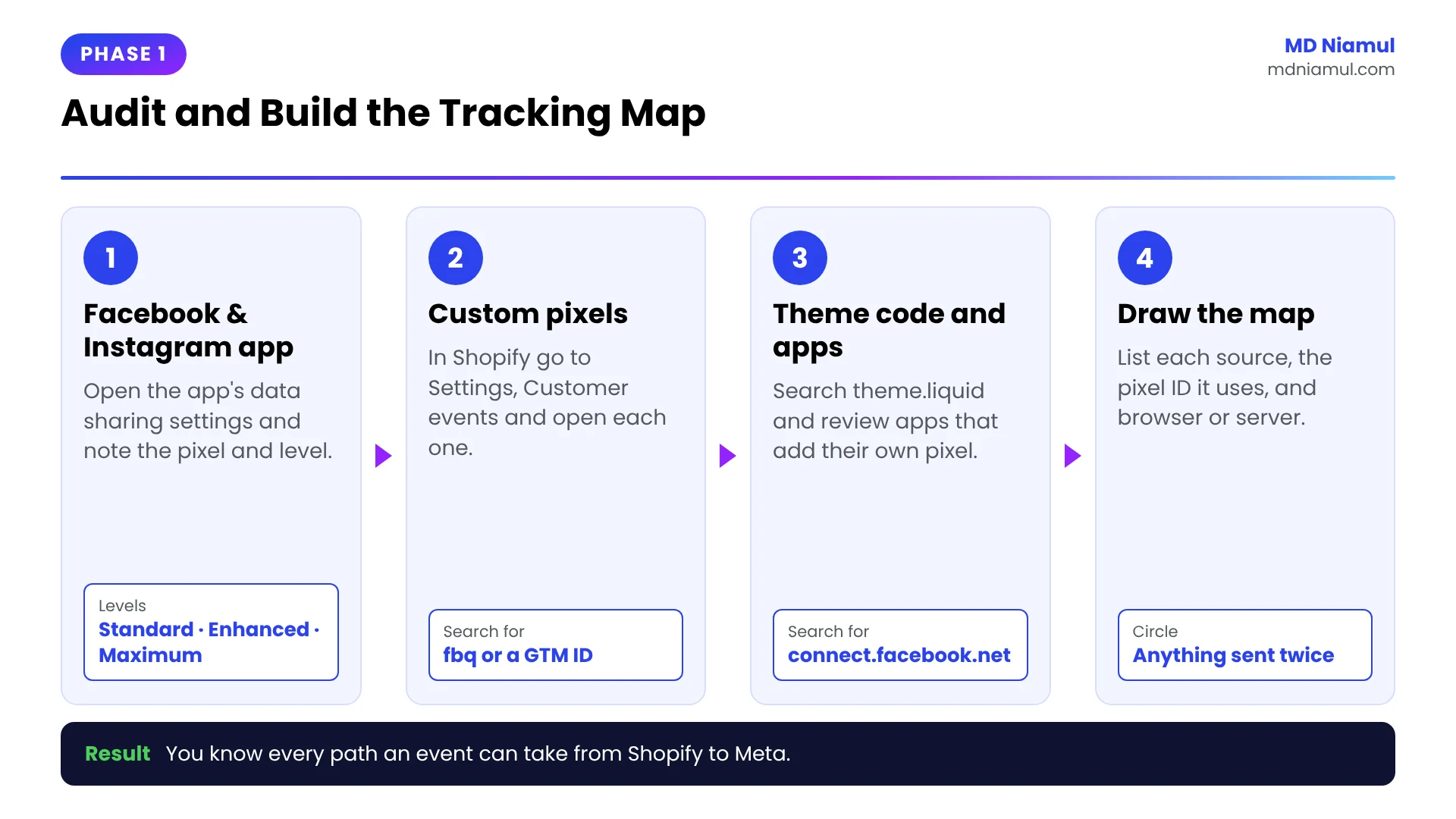

Phase 1: Audit and Build the Tracking Map

A tracking map is a simple list of every path an event can take from your store to Meta. You cannot fix what you have not listed. On Shopify, a Meta pixel can be installed in several places at once, and each place is easy to forget.

Step 1: Find every place that sends events to Meta

Step 2: Write down the data sharing level

The Facebook & Instagram app has three customer data sharing levels. They decide what Shopify sends on its own.

Step 3: Draw the map

1. List each source from Step 1.
2. Next to each one, write the pixel or dataset ID it sends to.
3. Mark whether it sends from the browser, the server, or both.
4. Circle anything that sends the same event twice, or sends to a pixel ID you do not recognise.

Critical step: check which pixel your 180-day audience is built on. If the audience uses pixel A and your store now fires pixel B, the audience will stay small no matter what else you fix.

Phase 2: Check Which Events Really Arrive

Now compare the map with what Meta actually receives. This shows which signals are missing.

Step 1: Watch the events live

1. In Meta Events Manager, choose your dataset under Data sources.
2. Open the Test events tab.
3. Enter your store URL to test browser events. For server events, copy the test event code shown there into your server setup.
4. In another tab, walk through your store: home page, a collection, a product, add to cart, checkout, and a test order.
5. Watch each event appear and note whether it says Browser, Server, or both.

Step 2: Compare against the funnel

Why PageView matters most here: a website visitors audience is built from page-level events. If PageView is missing on part of your store, those visitors never enter the audience, even when your Purchase event is perfect.

Good to know: Shopify runs app pixels and custom pixels in a sandbox, which is a sealed box that limits what the script can see. Tools like the Meta Pixel Helper do not always detect pixels that run inside it. Trust the Test events tab over the browser extension.

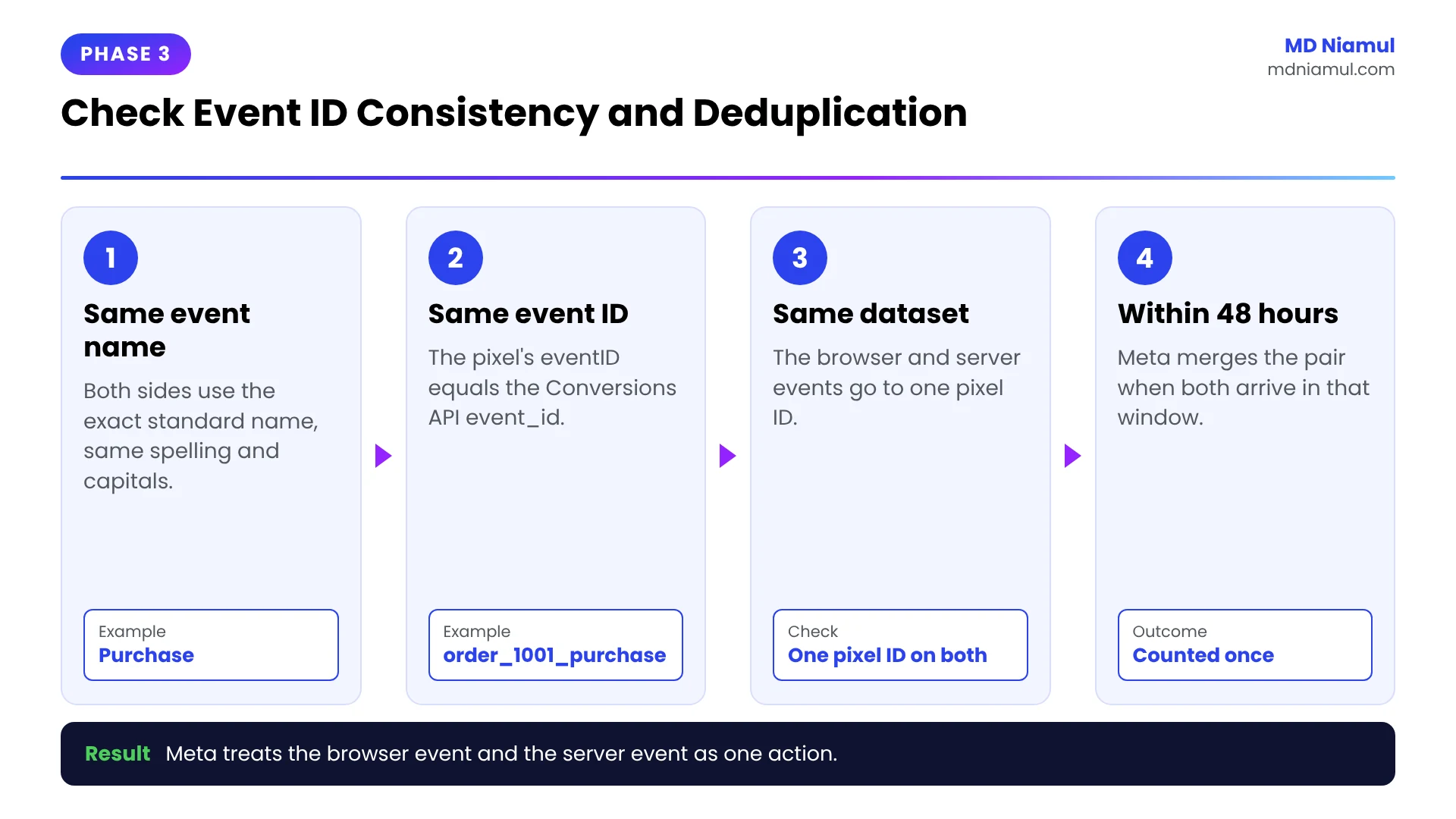

Phase 3: Check Event ID Consistency and Deduplication

This is where most audits find the real problem. If the browser event and the server event do not carry the same ID, Meta cannot tell they are the same action.

The rule

Meta treats a browser event and a server event as one when all of these are true:

• The event name is the same, for example Purchase.
• The event ID is the same. In the pixel it is called eventID. In the Conversions API it is called event_id.
• Both go to the same pixel or dataset.
• They arrive within 48 hours of each other.

Here is what a matching pair looks like:

// 1. Browser: the Meta Pixel sends the purchase with an event ID
fbq('track', 'Purchase',
  { value: 129.00, currency: 'USD' },
  { eventID: 'order_1001_purchase' }
);

// 2. Server: the Conversions API sends the same event name and the same ID
{
  "event_name": "Purchase",
  "event_id": "order_1001_purchase",
  "event_time": 1791500000,
  "action_source": "website",
  "user_data": { "em": ["<hashed email>"], "fbp": "fb.1.1791400000.1234567890" },
  "custom_data": { "value": 129.00, "currency": "USD" }
}

Step 1: Compare the IDs

1. In Test events, trigger one action, for example add to cart.
2. Click the browser event and the server event to expand them.
3. Compare the event ID on both. They must be identical, character for character.
4. Repeat for PageView, ViewContent, InitiateCheckout and Purchase.

Step 2: Read the result

Important: an event ID only merges a browser event with a server event. It does not merge two browser events from two different installs. That is why Phase 1 comes first.

You can build and check a server payload with my free Meta CAPI payload builder.

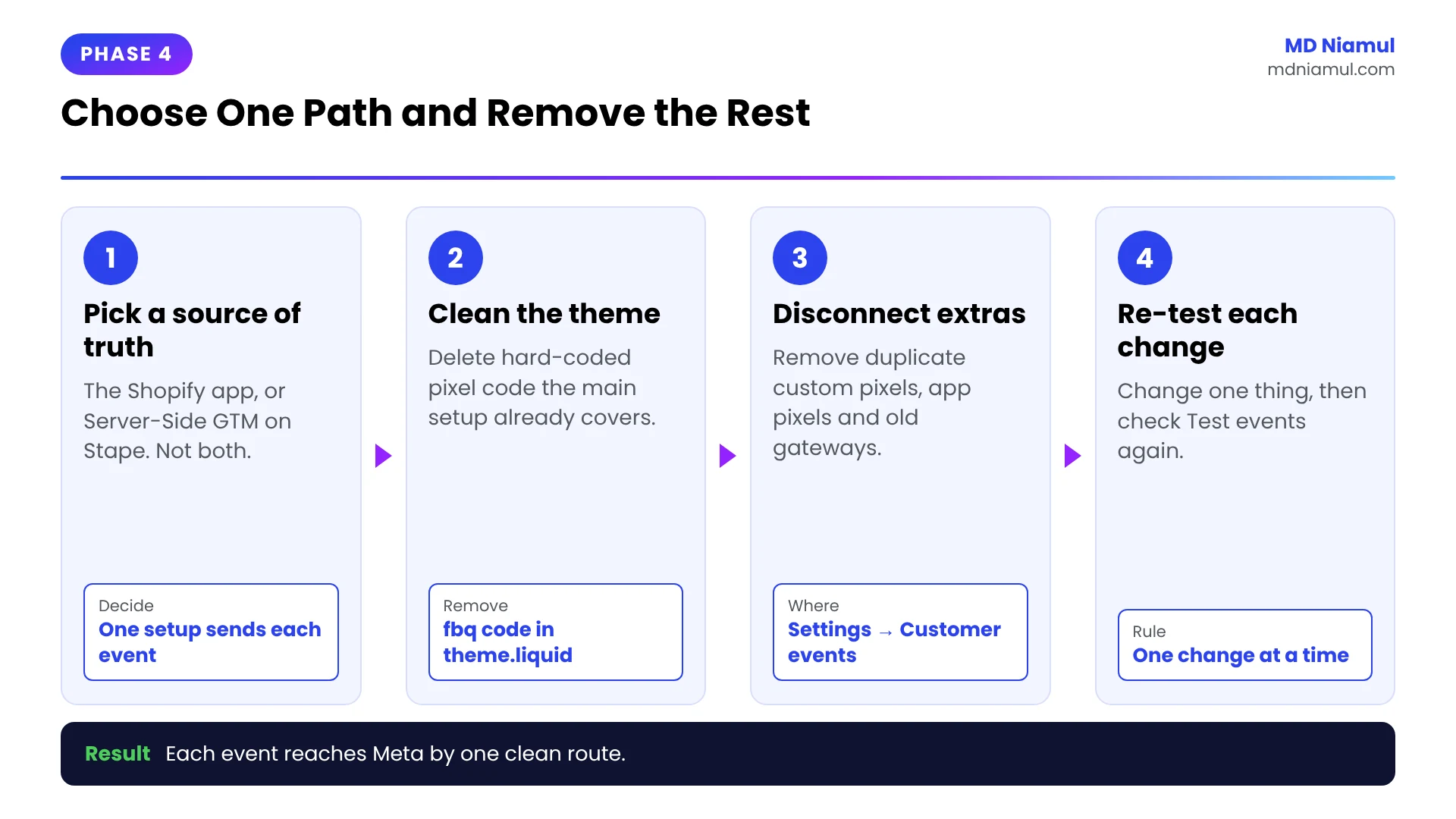

Phase 4: Choose One Path and Remove the Rest

With the map and the test results in hand, decide which setup will be your single source of truth. Then switch off everything else that sends the same events.

Step 1: Pick the architecture

Step 2: Remove what you no longer need

1. Delete hard-coded fbq code from the theme if the app or GTM already loads the pixel.
2. Remove or disconnect custom pixels in Customer events that duplicate the main setup.
3. Turn off the Meta pixel inside any other app that adds its own.
4. If you move to Server-Side GTM, lower or disconnect the app’s data sharing so it does not send the same events again.
5. Disconnect old gateway or partner connections you no longer use.

Warning: change one thing at a time and re-test after each change. If you remove three sources at once and events stop, you will not know which one mattered.

Phase 5: Set Up or Repair Server-Side Tracking with Stape

Server-side tracking sends your events from a server you control, on your own subdomain. Browser blockers and short cookie lifetimes affect it much less than a browser pixel.

Step 1: Prepare the server container

1. In Google Tag Manager, create a container and choose Server as the platform.
2. In Stape, create a container and paste the container configuration from GTM.
3. Add a custom subdomain such as sgtm.yourstore.com and add the DNS records Stape shows you.

Step 2: Send Shopify events to the server

1. Install the Stape Conversion Tracking app in Shopify. It creates the data layer for store and checkout events and connects the store to your server container.
2. Follow the app’s setup screen to connect your GTM container and your tagging server URL.
3. In your Web container, send events to the server container through your Google tag or a data tag.

Step 3: Add the Meta tags

1. In Meta Events Manager, open the dataset’s Settings, find the Conversions API section, and generate an access token.
2. In your Server container, add a Conversions API tag for Meta from the template gallery.
3. Enter your pixel ID and the access token.
4. Map the event ID field to the event ID that comes from the web event.
5. In your Web container, make sure the Meta pixel tag sends the same event ID variable as its eventID.

Critical step: the web tag and the server tag must read the event ID from the same variable. If each one creates its own ID, deduplication fails again.

For a full walkthrough of this build, see my guide on Meta Pixel and Conversions API server-side tracking with sGTM and Stape, or my Shopify server-side tracking service.

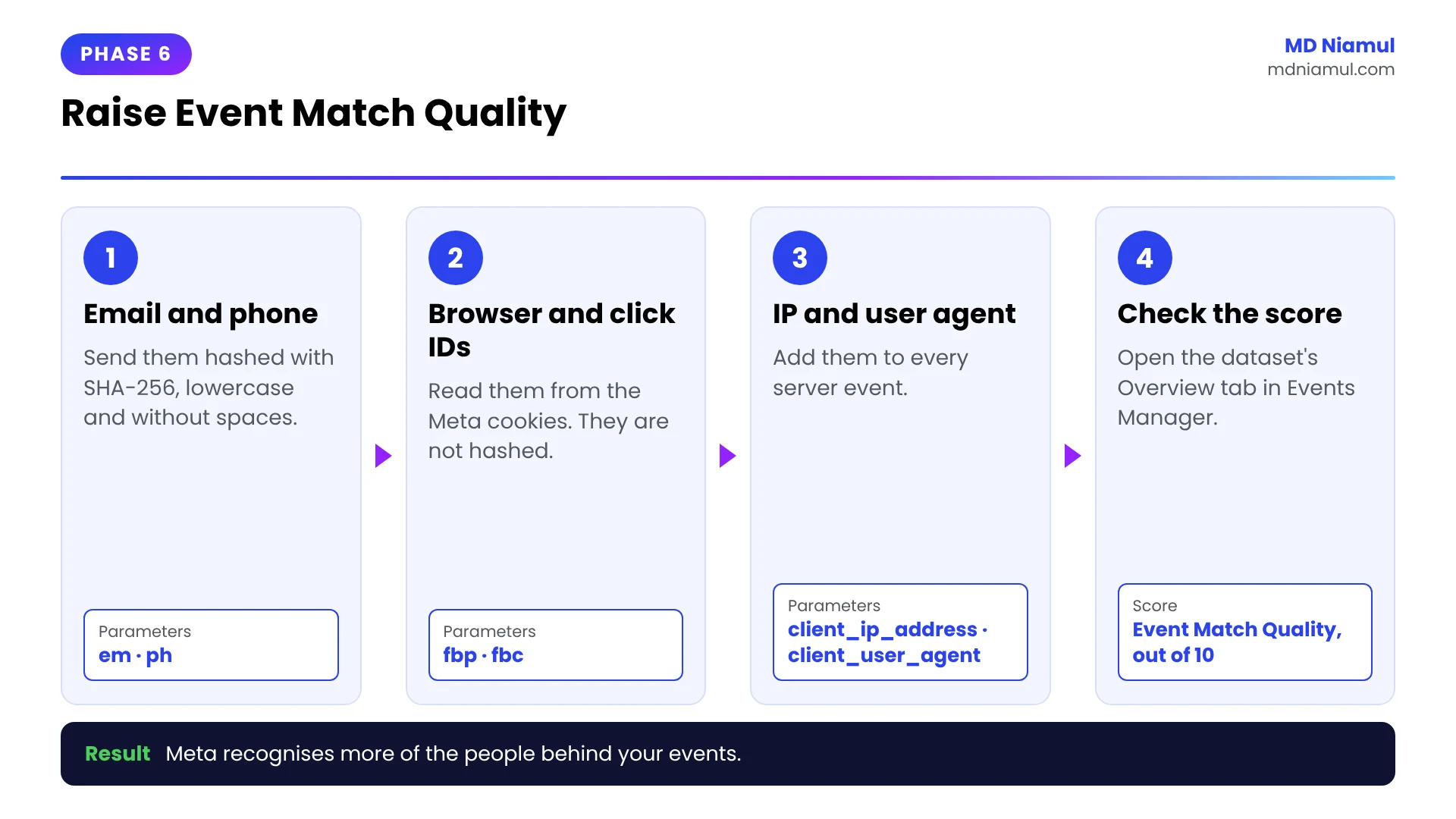

Phase 6: Raise Event Match Quality

Event Match Quality is Meta’s score, out of 10, for how well the customer details in your events help it recognise the person. A recognised person can join your audience. An unrecognised one cannot.

Step 1: Send the right parameters

Step 2: Check the score

1. In Events Manager, open your dataset and look at the events list on the Overview tab.
2. Find the Event Match Quality score next to each server event.
3. Open the event to see which parameters are sent and which are missing.
4. Add the missing ones where your store really has the data, for example email and phone at checkout.

Early events like PageView will always score lower than Purchase, because you know less about the visitor at that point. That is expected. Send fbp, fbc, IP address and user agent on every event, and add email and phone as soon as the customer provides them.

Consent: only send customer details when the visitor has agreed where the law requires it. In consent regions, Shopify holds back pixels until the visitor grants permission.

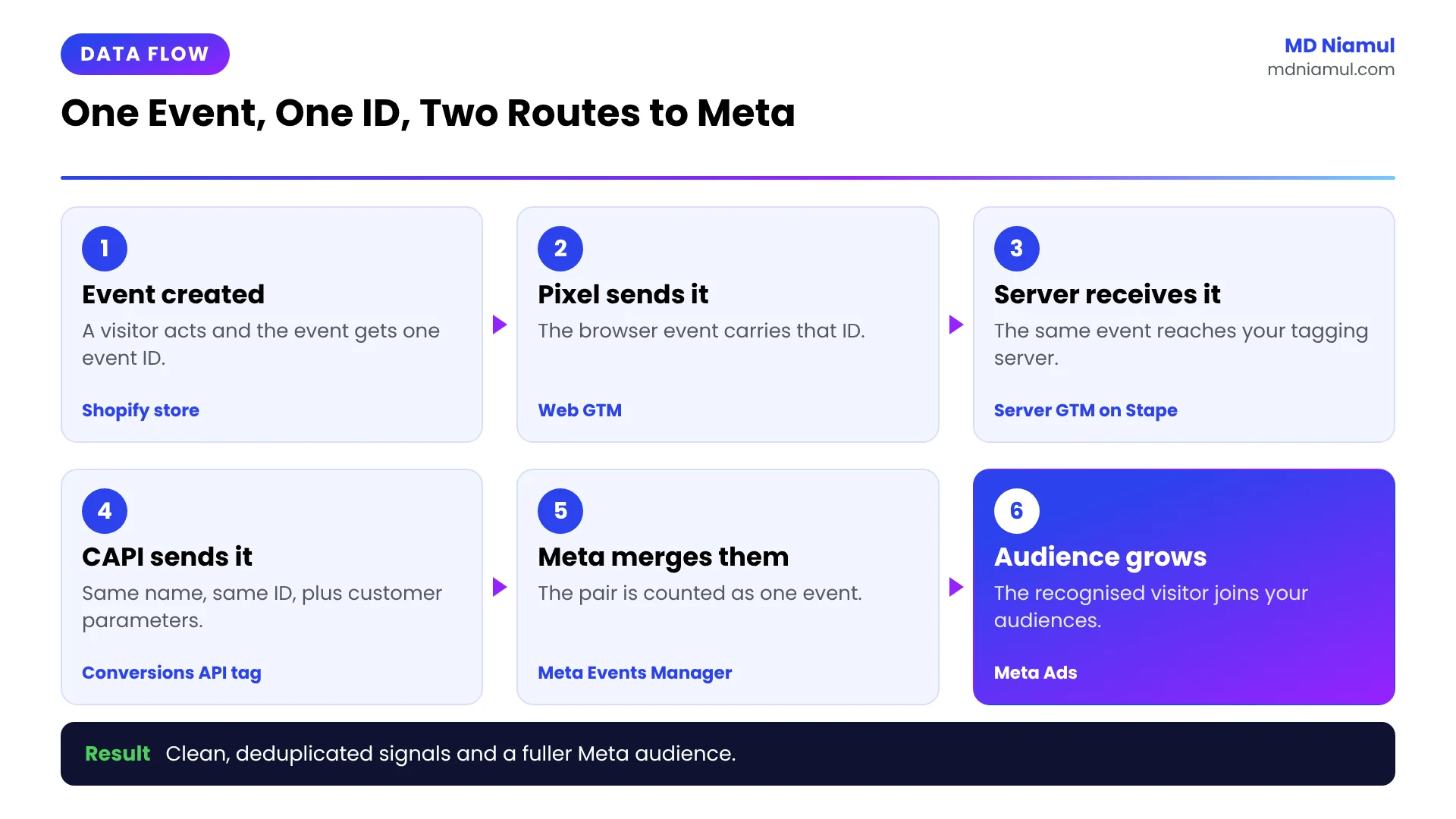

The Full Data Flow at a Glance

Testing & Validation Workflow

1. Test events tab. Walk the full funnel with the test event code active. Every action should show a browser event and a server event.
2. Event IDs. Expand each pair and confirm the IDs match.
3. One of each. Confirm there is only one browser PageView per page load and one Purchase per order.
4. Place a real test order. Check the Purchase value, currency and product IDs.
5. Diagnostics tab. Open Diagnostics in Events Manager a day later and clear any warnings.
6. Event Match Quality. Review the scores after a few days of real traffic.
7. Audience size. Watch the 180-day audience over the following weeks. It grows forward from the fix. It does not refill the past.
8. Write the playbook. Document the final map, the event list and the test steps, so the next person can check the setup in minutes.

Troubleshooting Common Mistakes

Mistake 1: Purchases are doubled in Meta

The Problem: Meta reports about twice as many purchases as Shopify.

The Cause: the browser and server events have different event IDs, or two separate setups both send Purchase.

The Solution: make both tags read one event ID variable, and remove the extra setup you found in Phase 1.

Mistake 2: Two PageView events on every page

The Problem: Test events shows two browser PageView events per page load.

The Cause: the pixel is loaded twice, usually by the Shopify app and again by theme code or GTM.

The Solution: keep one loader. Delete the hard-coded pixel from the theme or pause the GTM pixel tag.

Mistake 3: Server events arrive, but nothing is deduplicated

The Problem: you see browser and server events side by side, both counted.

The Cause: the server event has no event ID, the event names differ in spelling or capital letters, or the two events go to different pixel IDs.

The Solution: use the exact standard event name on both sides, map the event ID on the server tag, and confirm both use the same pixel ID.

Mistake 4: The audience stays small after the fix

The Problem: events look correct, but the 180-day audience barely moves.

The Cause: the audience is built on an old pixel, or not enough time has passed for new visitors to be added.

The Solution: open the audience and check its source pixel. Create a new audience on the correct dataset if needed, then give it a few weeks.

Mistake 5: Event Match Quality is low on Purchase

The Problem: the Purchase event scores poorly even though customers enter their details.

The Cause: email and phone are not passed to the server tag, or they are sent in the wrong format.

The Solution: map email and phone from the checkout data, in lowercase with no spaces before hashing, and send fbp and fbc with them.

What to Set Up Next

• Fix attribution across platforms. See how to fix Shopify attribution for Google Ads and Meta Ads with server-side tracking.
• Running Shopify Plus? Read my Shopify Plus server-side tracking solution.
• Check your consent setup. Follow installing Google Consent Mode v2 on Shopify via GTM.
• Estimate what you are losing. Try the free tracking loss calculator and the free server-side tracking checker.

If you would like this audit done for your store, see my work as a Facebook Conversions API specialist.

Conclusion

A small Meta audience on a busy Shopify store is a symptom. The audit finds the cause: a missing event, a pair of IDs that do not match, or an old pixel still running in the background.

Your next three moves are clear. First, build the tracking map and find every source. Second, test the funnel and compare the event IDs. Third, keep one clean path and remove the rest.

Diagnose first. Then fix once, and measure with confidence.
